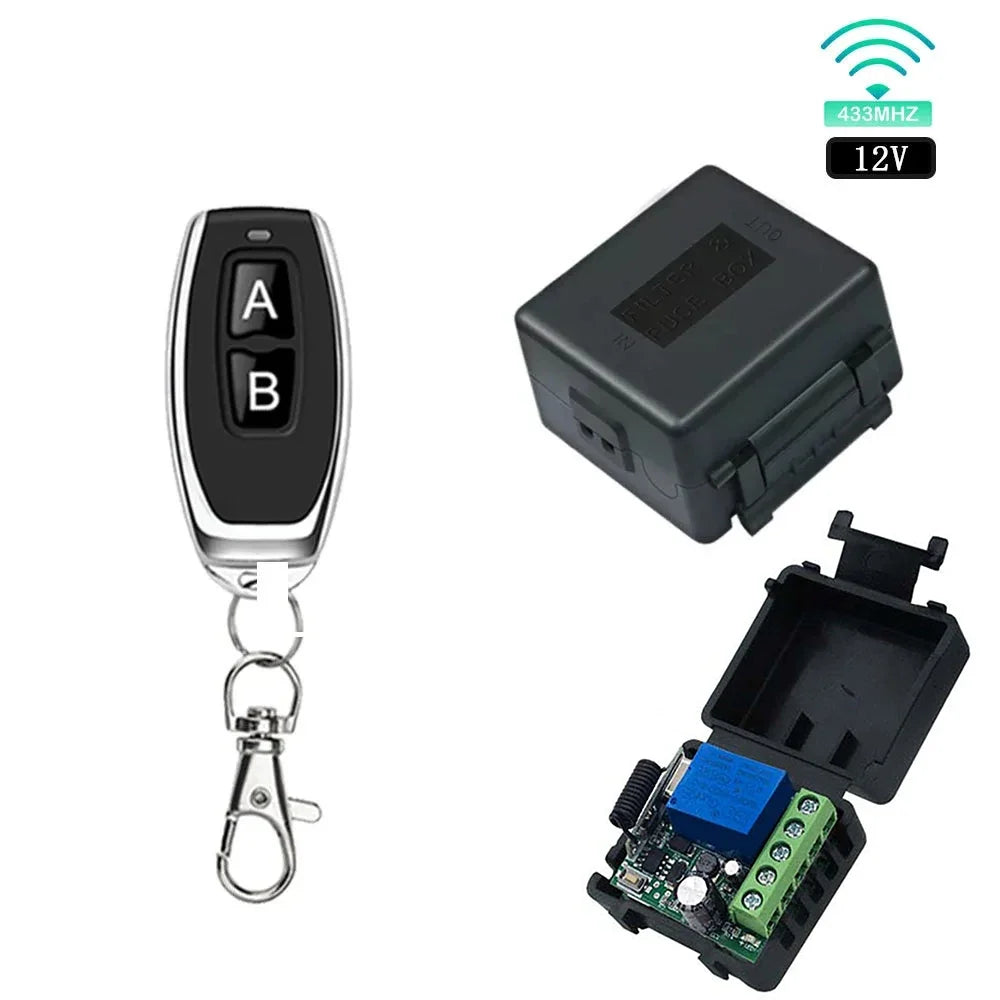

433Mhz Remote Control Wireless Switch DC 12V 1CH RF 10A Relay Receiver and 2CH Transmitter For Door Electromagnetic Lock
433Mhz Remote Control Wireless Switch DC 12V 1CH RF 10A Relay Receiver and 2CH Transmitter For Door Electromagnetic Lock
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: Szaoju
Choice: yes
Frequency: 433 MHz
High-concerned chemical: None
Origin: Mainland China
Use: Universal
Wireless Communication: RF
Due to different production batches, this product has two appearance designs, but the same product function does not affect its use. Please do not worry.

• Universal Gate Remote Control :This 433 Mhz universal gate remote control switch is a versatile tool for controlling your home's security systems. It's perfect for gate, LED garage doors, and more.
• DC 12V 10A Relay Receiver Mini Module :The product comes with a DC 12V 10A relay receiver mini module, ensuring reliable and efficient performance. This makes it an ideal choice for smart home control.
• Smart Home Control :As part of our smart home control category, this remote control switch enhances the automation of your living space, providing convenience and safety.
• Easy Installation :The product is designed for easy installation, allowing you to set up your home security systems without any professional help.

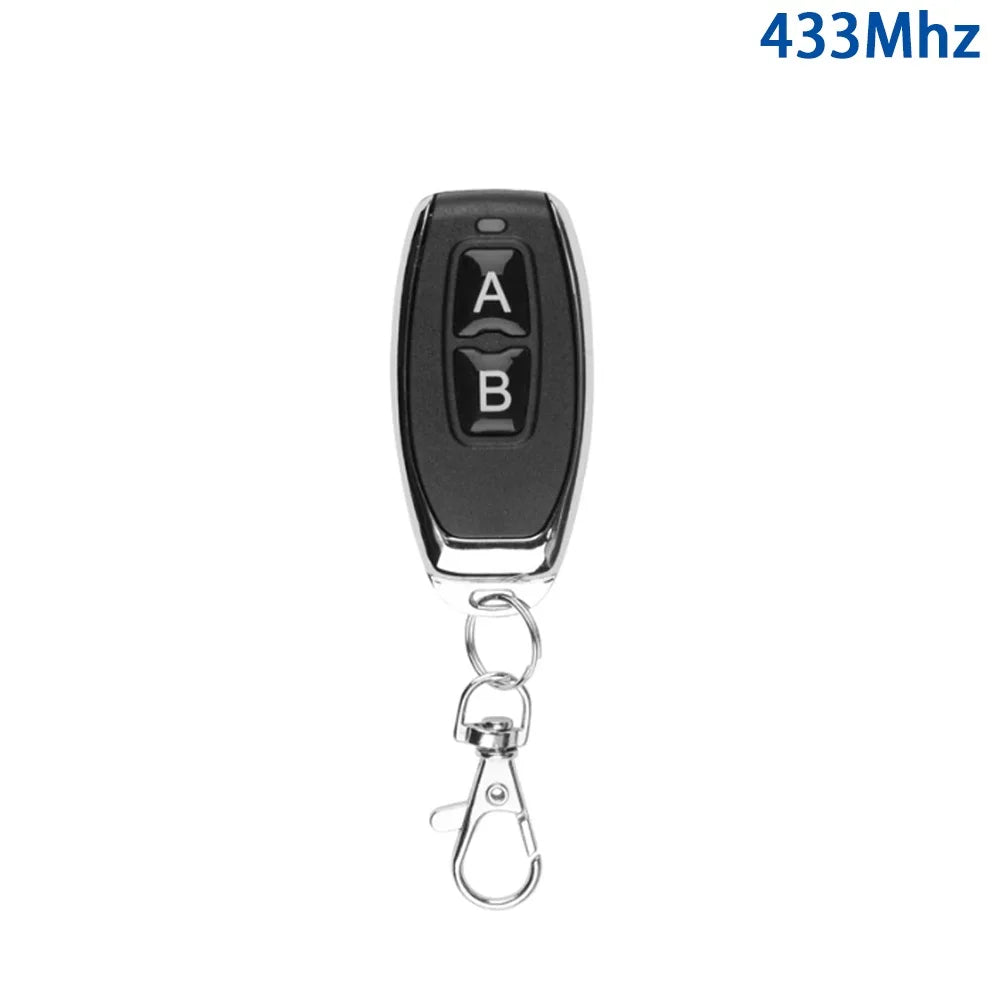

Specifications Of The Transmitter:
Operating Frequency: 433MHz
Power by 3V Coin Cell Button Battery(Battery included )
Material: PVC
Button: 2 Buttons
Operating Voltage: 3V
Operating Current: 12mA
Transmitting Power: 10mw
Modulation Mode: ASK (AM)
Encoding Type: Learning
Transfers Distance: 20-50 m
Specifications Of The Receiver:
Modulation Fashion: ASK
Working Mode:Momentary, Toggle, Latching and Time Delay Mode.
Input Voltage: DC10 ~ 14V
RF Frequency: 433MHz
Quiescent Current: 5mA
Receiving Sensitivity: 97dbm
Remote Control Range: 100m(Free Space)
Wired Connection Way: Fixed Wiring Pillar
Decoding Mode: MCU Software Decoding.
Working Mode:Momentary, Toggle,Interlocked ModeLatching Time delay(5s ,10s ,15s )

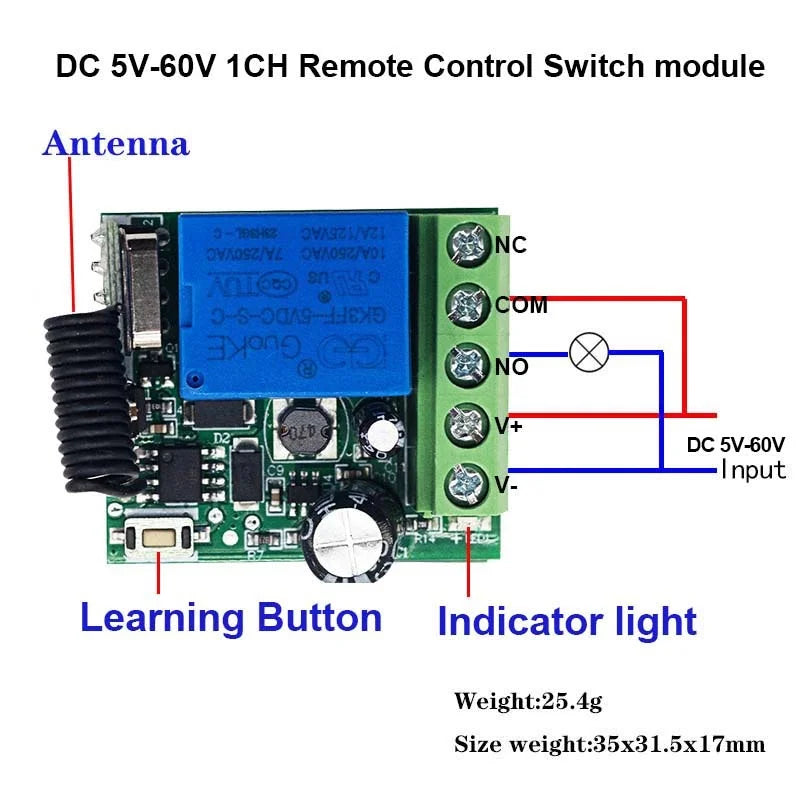

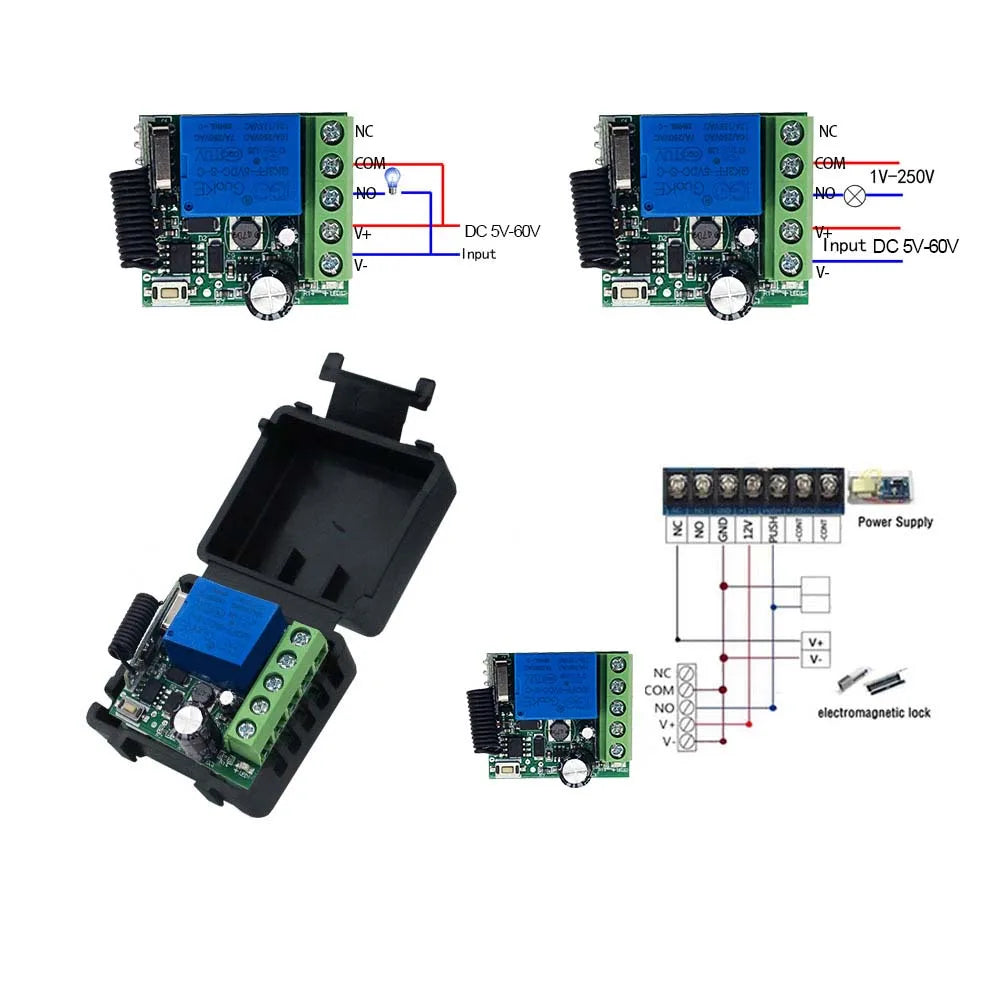

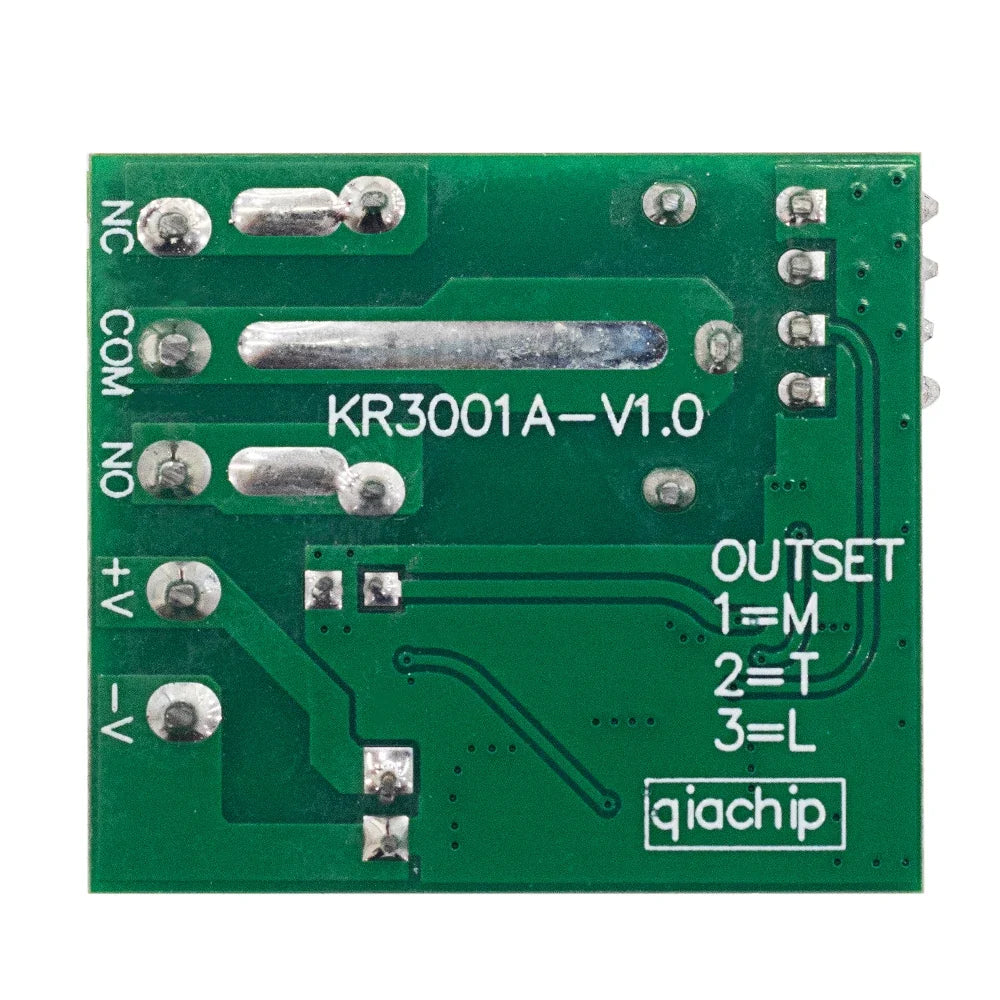

Wiring Diagrams 1:
+V :12V +(Input)
-V:12V-(Input).
NO:Normal Open(Output).
COM:Common(Output).
NC: Normal Close(Output).
Color:Green(PCB Board),Black(Outside Shell)
Circuit Board Size:3.5*3.0*1.8cm
