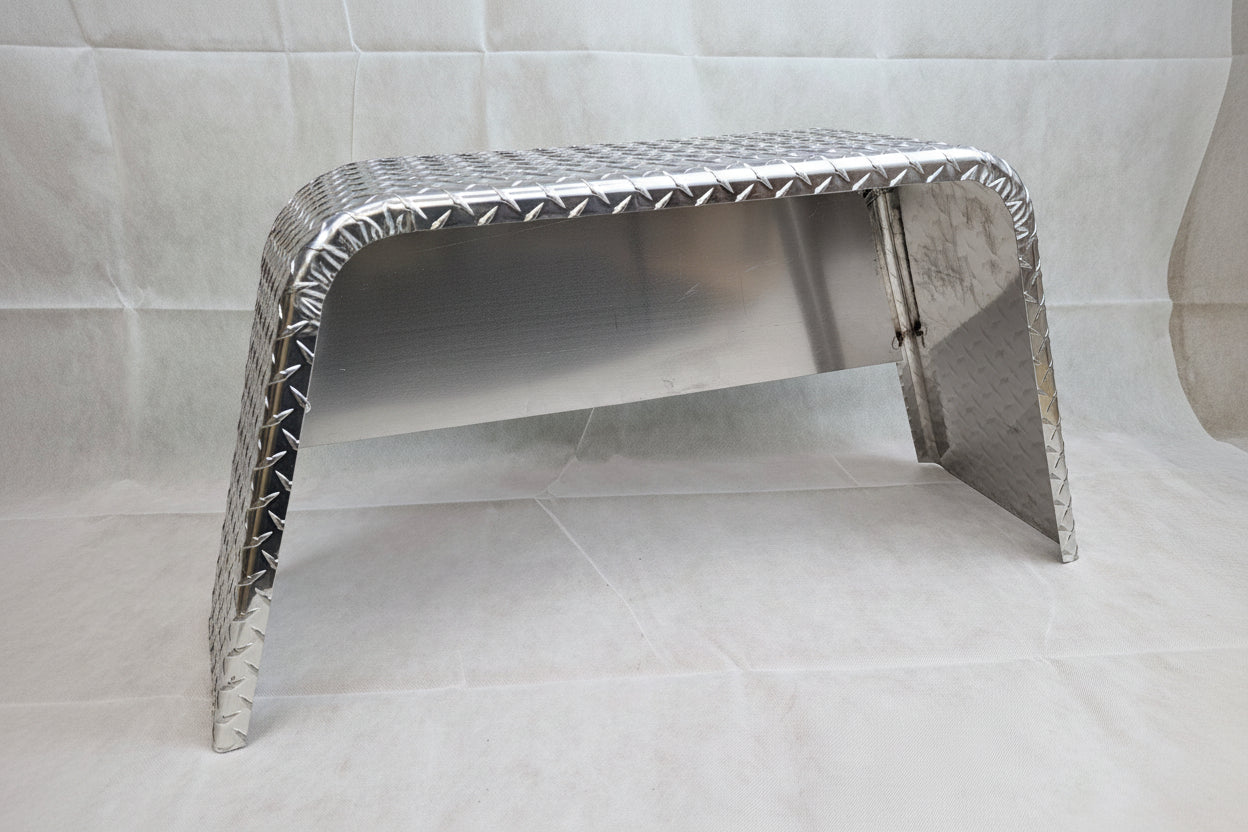

Protect your single-axle trailer with this Kampco Jeep-style aluminum trailer fender, built from .063" diamond plate aluminum for excellent strength, corrosion resistance, and long-term durability. Designed for open utility trailers and equipment trailers, this fender provides reliable tire coverage while adding a rugged, professional appearance to your trailer.

The Jeep-style angled design offers improved tire clearance compared to traditional round fenders, helping prevent interference when your suspension compresses under load. The reinforced aluminum backer plate provides a solid mounting surface for bolt-on installation to trailer side rails.

With dimensions of approximately 35.6" wide, 19.25" tall, and 10" deep, this fender fits many single-axle utility trailers using 13", 14", or 15" trailer tires. The 70-degree angled face improves wheel clearance and coverage while maintaining a compact footprint.

Constructed from rust-resistant aluminum diamond treadplate, this fender performs well in harsh environments including rain, road salt, mud, and construction job sites.

Key Features

Heavy-Duty .063 Aluminum Construction
Diamond tread aluminum resists corrosion and provides long service life.

Jeep-Style Fender Design
Angled profile improves tire clearance and gives your trailer a rugged look.

Reinforced Backer Plate
Integrated mounting plate provides added strength for bolt-on installation.

Diamond Plate Finish
Adds structural rigidity and slip-resistant texture.

Designed for Open Trailers
Commonly used on utility trailers and landscape trailers.

Specifications

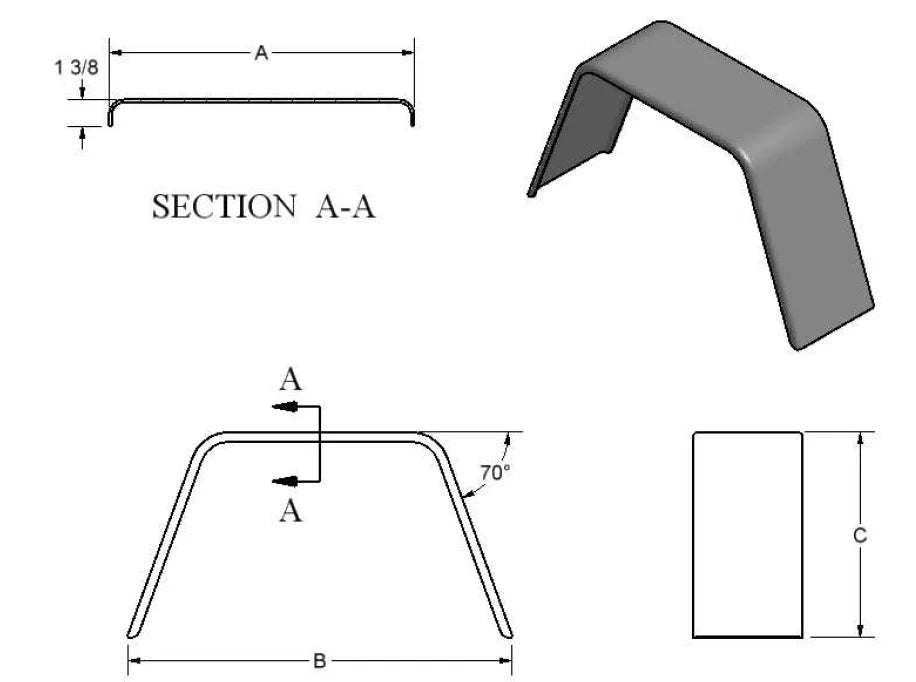

How to Measure Your Trailer Fender

Before ordering a replacement trailer fender, measure these three dimensions.

1. Fender Width

Measure across the top of the fender from front to rear.

For this model:

Approximately 35.6 inches

This should cover the full tire diameter and allow proper clearance.

2. Fender Depth

Measure from the inside mounting surface to the outer edge of the fender.

For this model:

10 inches deep

Your fender should be 1–2 inches wider than the tire width.

Example:

3. Fender Height

Measure from the trailer mounting rail to the top of the fender.

For this model:

19.25 inches

Allow 3–4 inches of clearance above the tire for suspension movement.

Common Trailer Applications

This Kampco Jeep-style fender is commonly used on:

• Single-axle utility trailers

• Landscape trailers

• Equipment trailers

• ATV / UTV trailers

• Small cargo trailers

It is commonly installed on 5x8, 5x10, and 6x10 open trailers.
